The OBDMonster V400 12-24V Electrical Short Open Breaker Circuit Finder is built for professional technicians, mobile mechanics, automotive electricians, fleet maintenance teams, trailer service users, and advanced DIY mechanics who need a complete electrical diagnostic tool in one kit. It combines the workflow of a power probe, circuit tester, multimeter, oscilloscope, battery tester, injector tester, and component activation tool.

Vehicle electrical problems can be difficult to diagnose with a basic test light. A blown fuse, poor ground, open wire, short circuit, weak relay, unstable signal, faulty trailer connector, fuel injector issue, or failed electrical component can waste hours of repair time. The V400 helps users test, trace, activate, and verify circuits faster with a clear digital interface and multiple professional diagnostic modes.

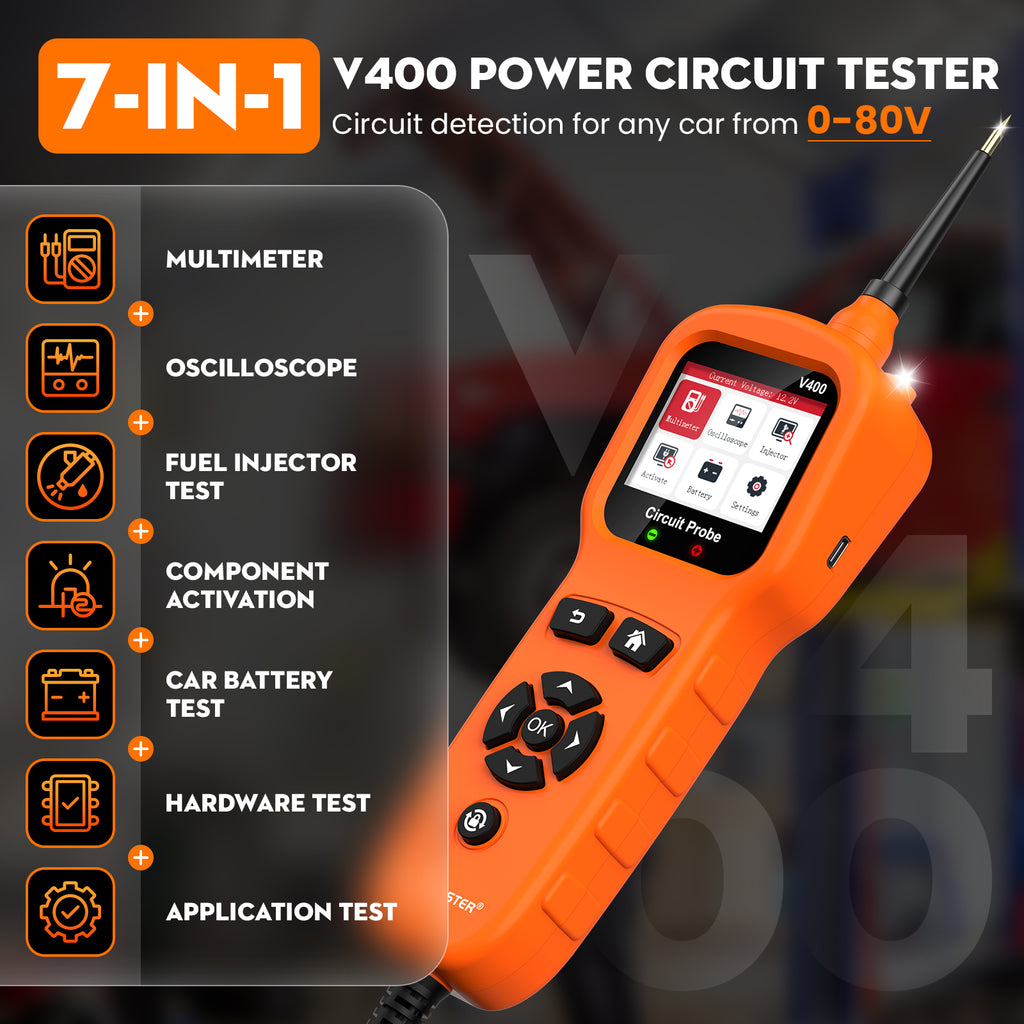

7-in-1 Power Circuit Tester for Complete Automotive Electrical Diagnostics

The OBDMonster V400 is designed as a professional all-in-one circuit tester. Instead of switching between multiple tools, users can perform multimeter testing, oscilloscope signal analysis, fuel injector testing, car battery testing, component activation, hardware test, and application-level circuit inspection from one handheld diagnostic device.

0–80V DC Test Range, 6–32V Input, 32.8FT Cable, and 30A Crocodile Clips

The V400 supports a wide 0–80V DC test voltage range, making it practical for many automotive electrical systems and diagnostic situations. Its 6–32V DC input voltage range is suitable for common 12V and 24V vehicle environments.

The long 32.8FT cable gives technicians enough reach to work around the full vehicle, including engine bay, cabin, rear lighting area, trailer connector, cargo compartment, and underbody wiring sections. The upgraded 30A crocodile clips provide a stronger battery connection for stable testing.

320×240 TFT Screen with 180° Rotation and Red/Green Polarity LED

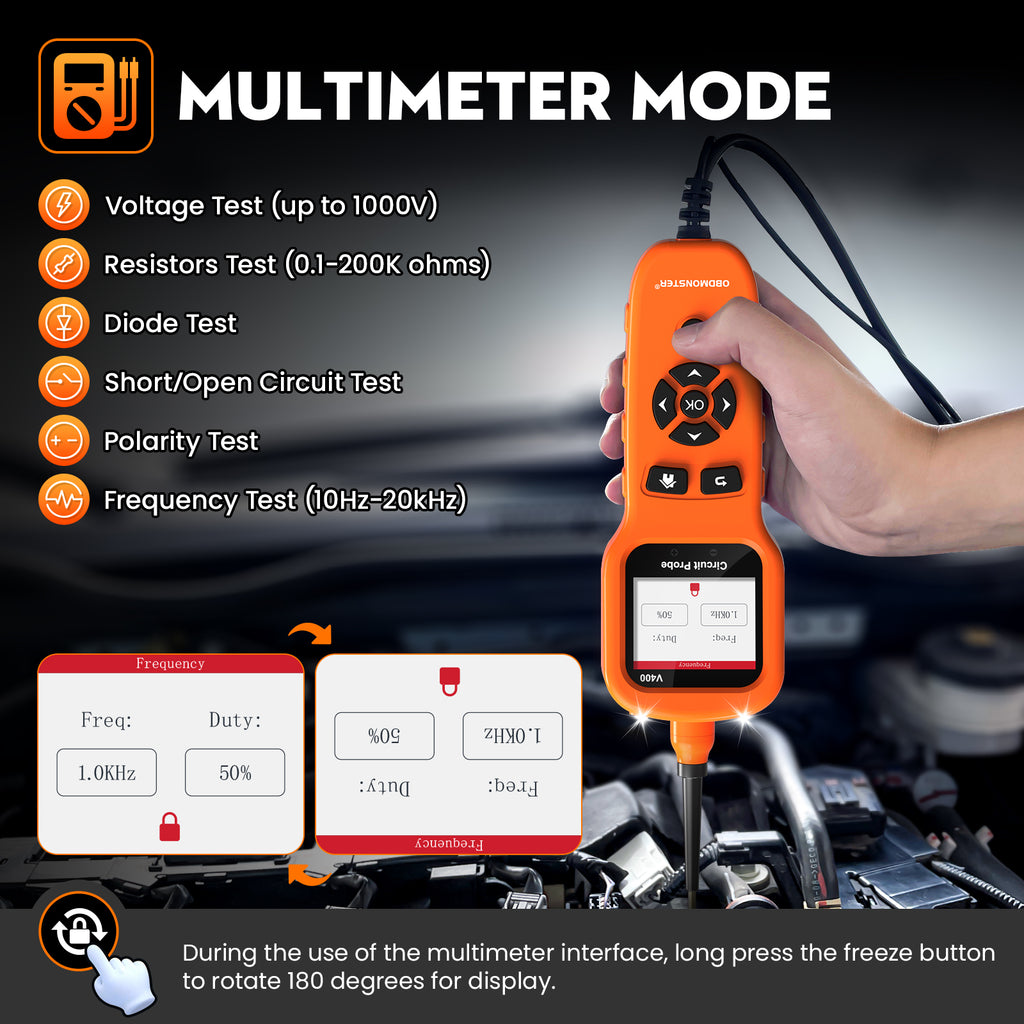

The V400 features a large 320×240 TFT display designed to show test data clearly. During multimeter operation, users can long-press the freeze button to rotate the display 180 degrees, making the screen easier to read when working under dashboards, inside engine bays, near fuse boxes, around trailer connectors, or in other tight working positions.

Red and green polarity LEDs help users quickly identify positive and negative circuit conditions. This makes power and ground testing faster and reduces the chance of misreading circuit polarity during repair work.

Built-In Light and Beep Warning for Real Workshop Use

Automotive electrical testing often happens in dark or narrow areas. The V400 includes a built-in light near the probe to illuminate test points in fuse boxes, door panels, engine compartments, trailer connectors, and under-dash areas.

The beep warning provides audible feedback during supported test operations, allowing users to continue testing without staring at the screen at every moment. This is especially useful during continuity checks, circuit verification, and quick fault identification.

11 Languages and Type-C Upgradeability

The V400 supports an 11-language interface, including English, French, Polish, Czech, Italian, German, Portuguese, Russian, Japanese, and Chinese Simplified / Traditional. This makes the tool easier to use for international repair shops, distributors, technicians, and training environments.

The Type-C USB upgrade interface supports equipment updates, helping the tool stay more serviceable and adaptable for future use.

Multimeter, Oscilloscope, and 12V / 24V Car Battery Test

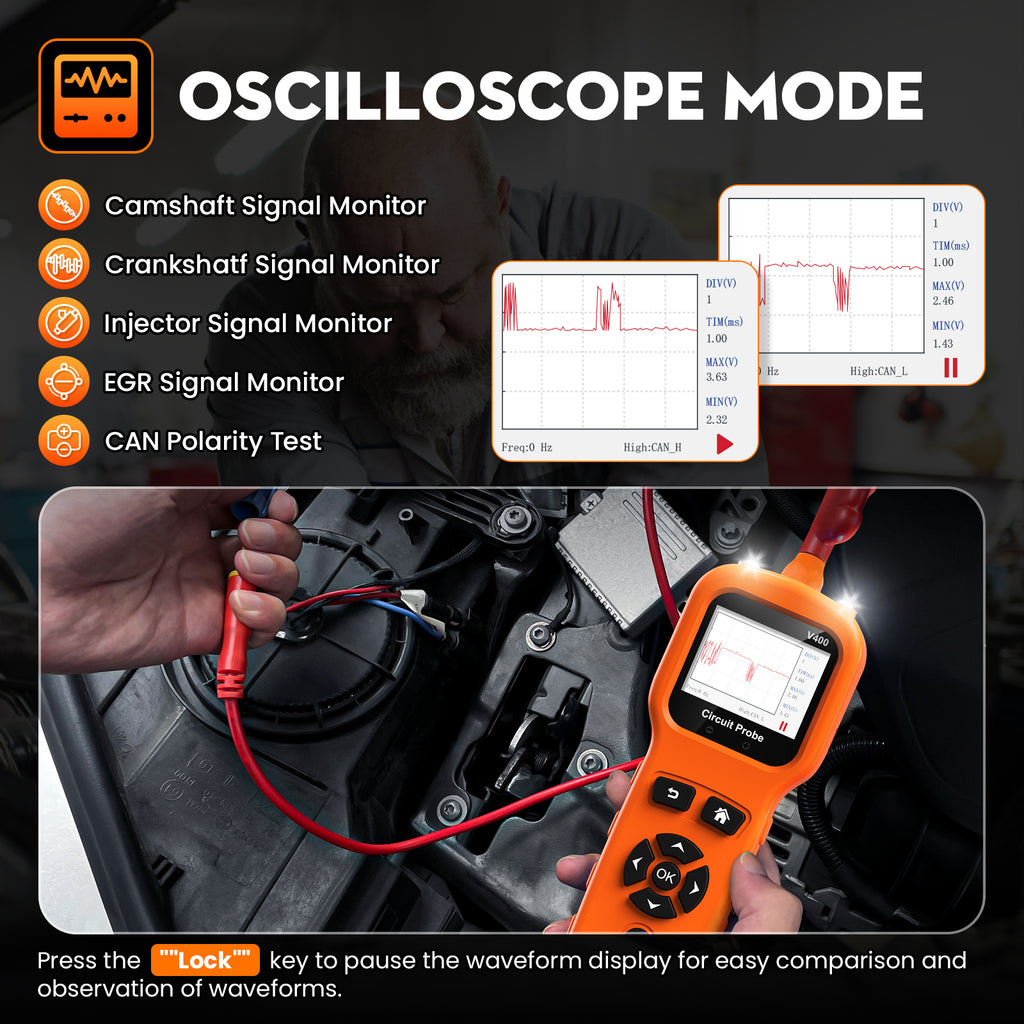

The V400 includes professional multimeter-style functions for voltage testing, resistance testing, frequency testing, short/open circuit testing, polarity testing, diode testing, and CAN polarity testing. It also provides oscilloscope capability for monitoring signal patterns such as camshaft signal, crankshaft signal, injector signal, and EGR signal.

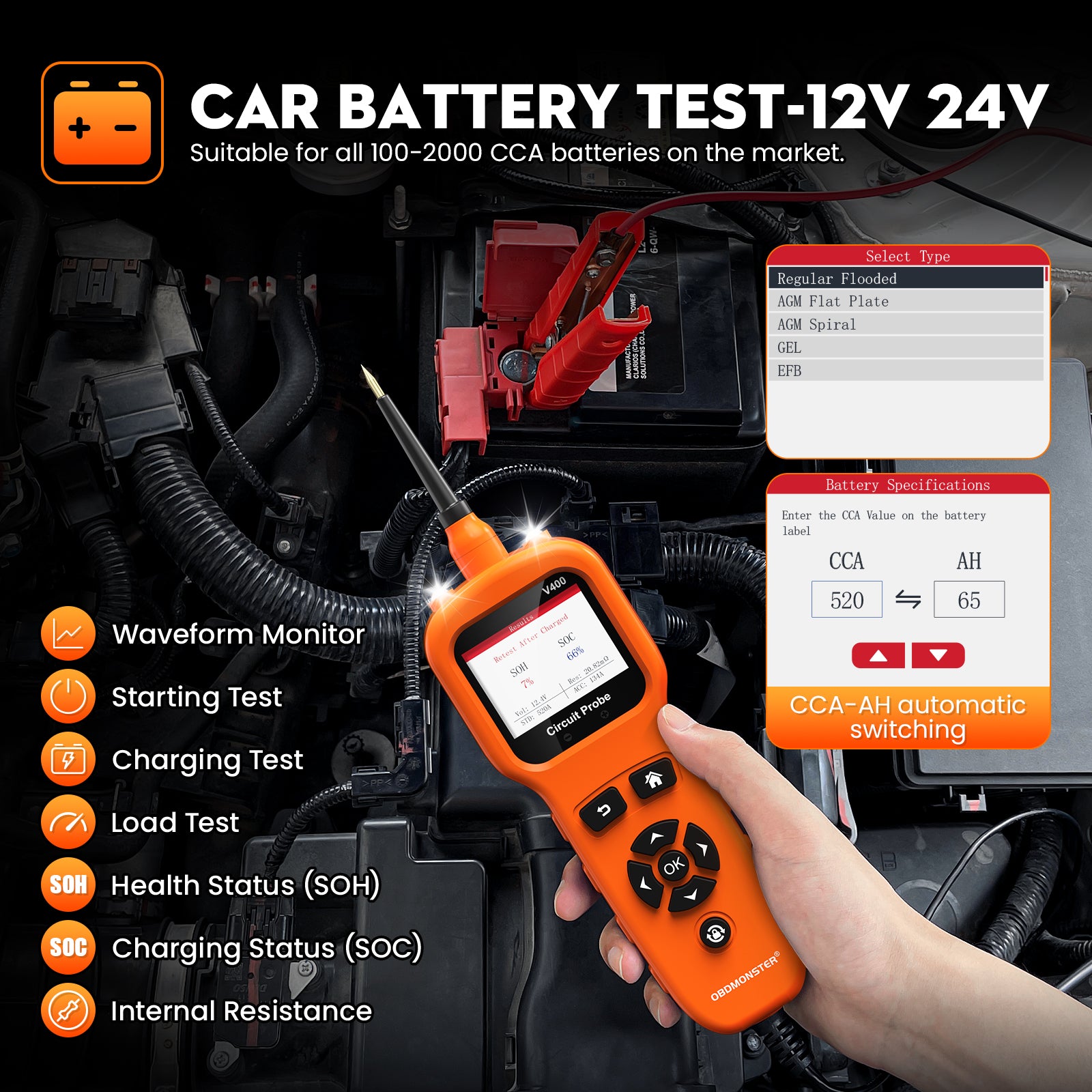

For 12V and 24V vehicle battery systems, the V400 supports battery testing with CCA-AH automatic switching. Users can check waveform monitoring, starting test, charging test, load test, state of health, state of charge, charging status, and internal resistance.

Fuel Injector Test, Component Activation, and Hardware Test

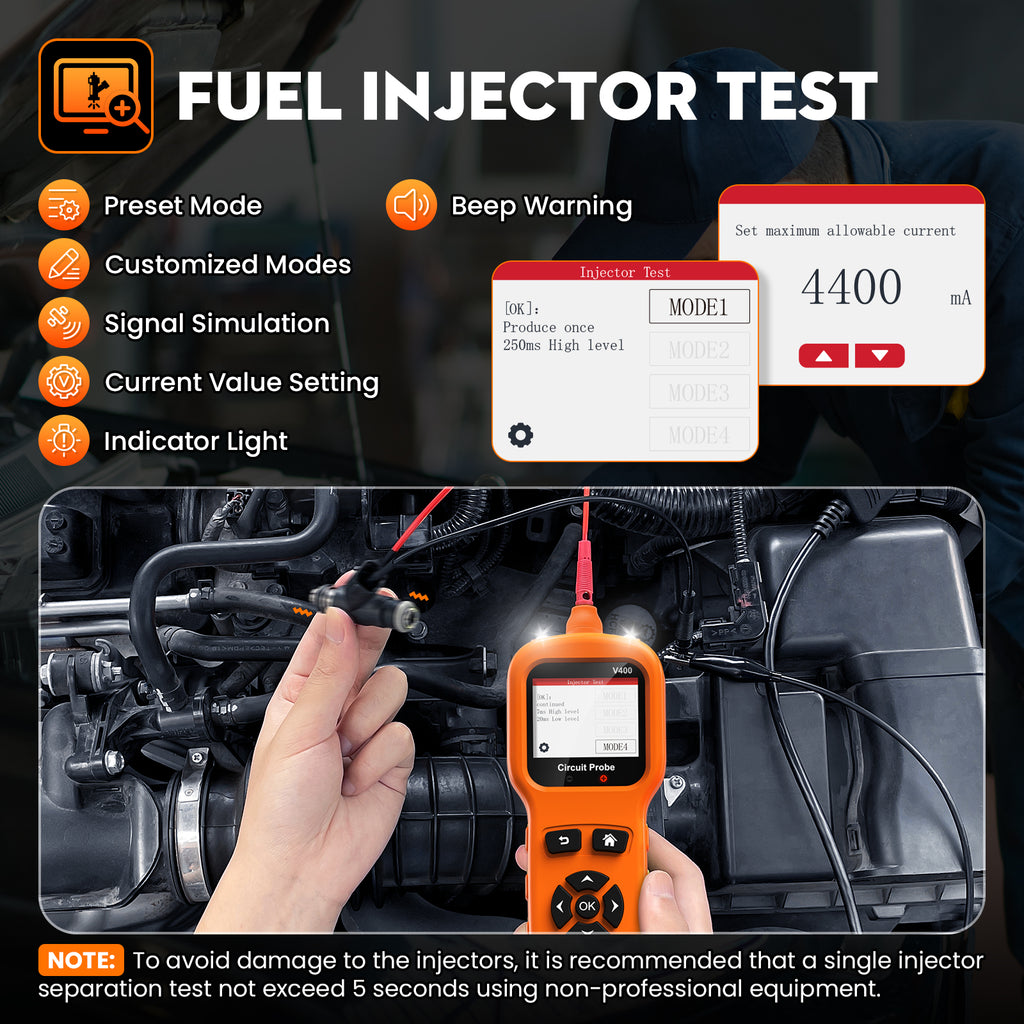

The V400 supports fuel injector testing with preset modes, custom mode, and signal simulation. This helps technicians evaluate injector separation, injector response, and signal behavior in supported diagnostic scenarios.

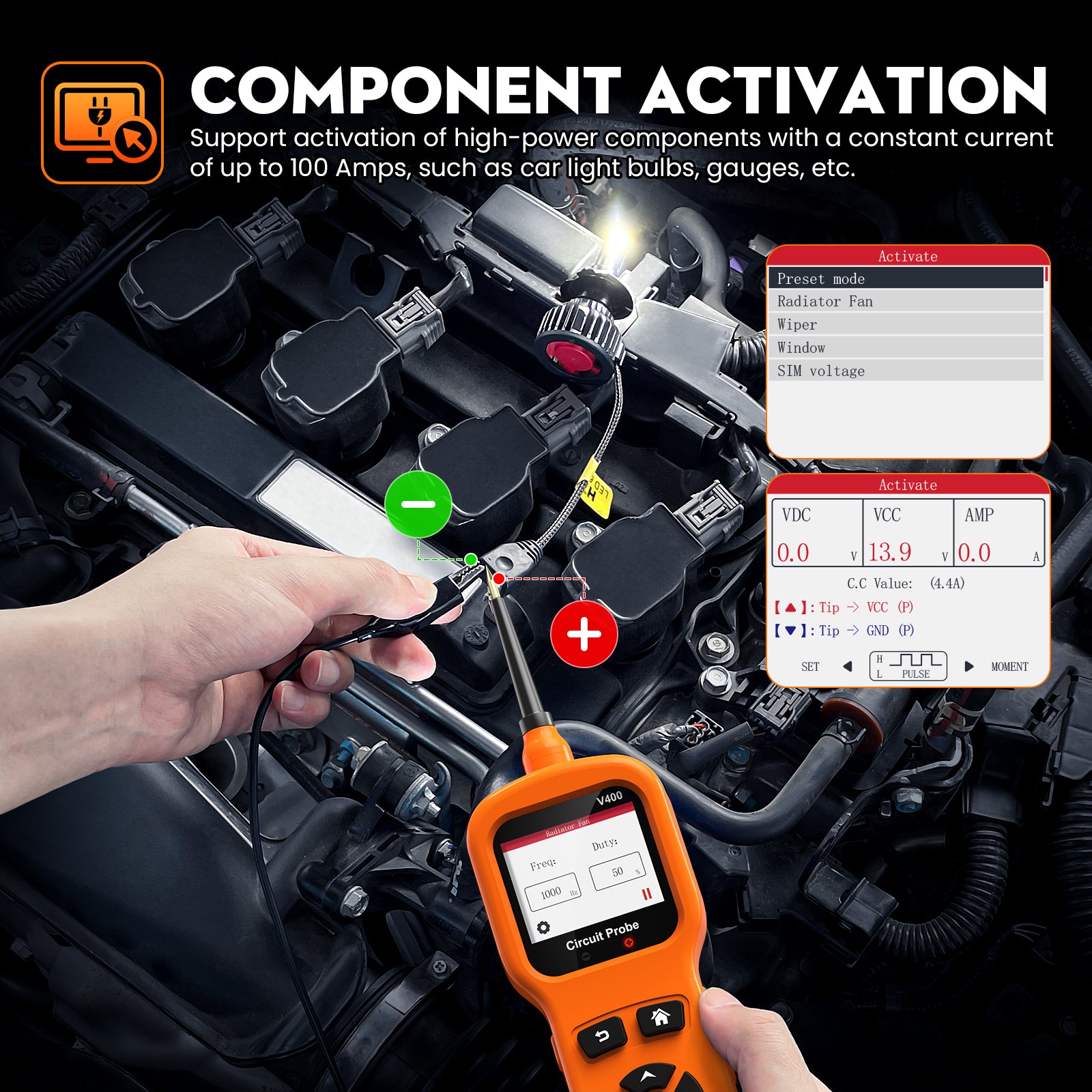

Component activation supports different control modes including moment, latch, pulse, and circuit breaker mode. Users can test supported radiator fans, wipers, electric windows, relays, motors, pumps, solenoids, and sensor voltage simulation. Hardware test functions include display test, keyboard test, LED test, and beep test.

Latest Upgrades for Short Circuit Tracking, Trailer Light Testing, and Component Checks

The V400 is designed to cover the practical repair problems technicians face every day. It supports application test, continuity test, jumper function, short circuit tracking, vehicle component activation, trailer light and connection test, component-in-hand activation, damaged ground contact checking, signal circuit testing, and equipment upgrade support.

These functions make the V400 useful for diagnosing blown fuses, open circuits, poor grounds, trailer wiring issues, lighting faults, relay problems, accessory failures, signal circuit abnormalities, and intermittent vehicle electrical faults.

Designed for Real Automotive Electrical Problems

What’s in the Box?

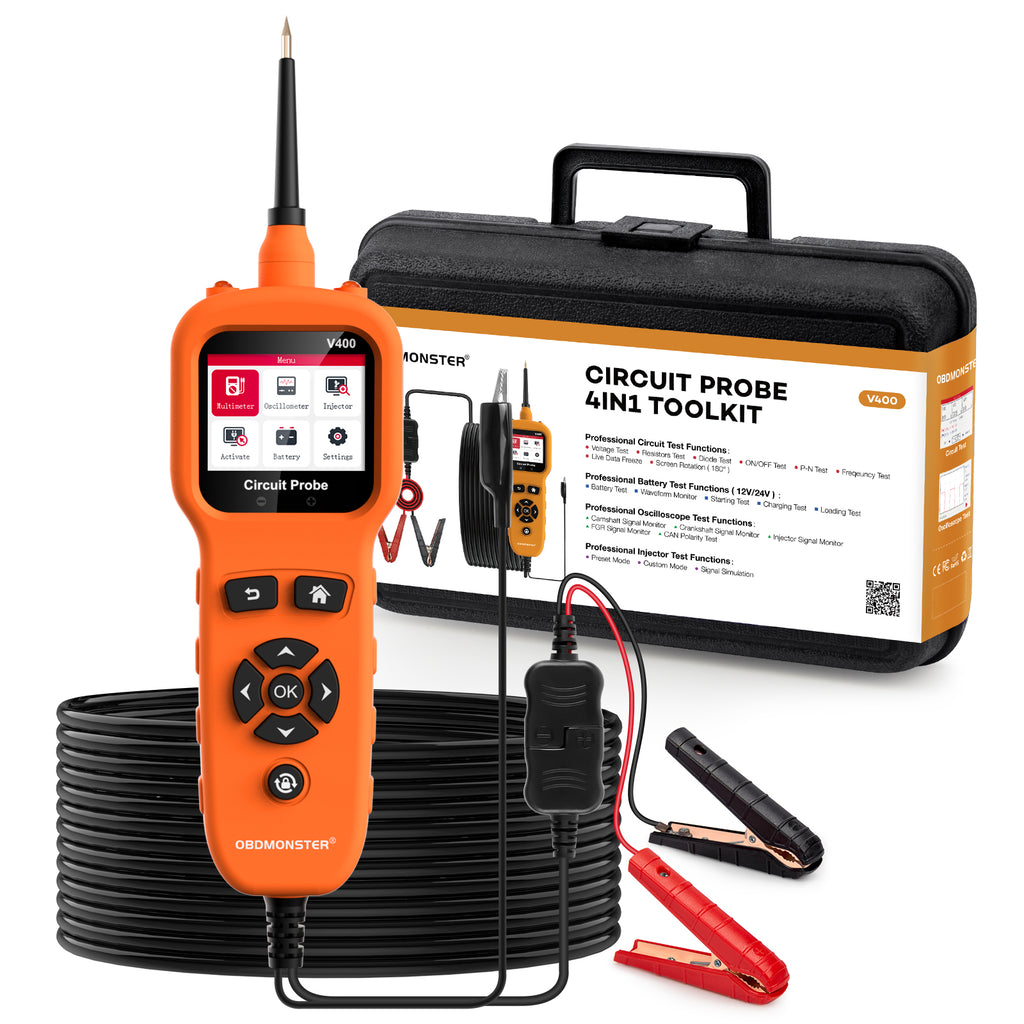

The V400 comes as a professional kit with the main unit, all-copper alligator clips, extension cable, universal jumpers, test probes, Type-C data cable, user manuals, packing list, and a durable blow molding box for storage and transport.

Key Features

Technical Specifications

Who Should Use the OBDMonster V400?

The V400 is designed for users who need more than a basic circuit tester. It is suitable for professional auto repair, electrical diagnostics, trailer service, fleet maintenance, vehicle accessory troubleshooting, fuel injector testing, relay and fuse diagnosis, and advanced automotive electrical work.

• Professional auto repair shops
• Automotive electrical diagnostic technicians
• Mobile mechanics
• Fleet maintenance teams
• Trailer and RV service technicians
• Fuel injector and electrical system diagnostic users
• Motorcycle, boat, truck, and equipment maintenance users
• Advanced DIY users and automotive enthusiasts
