The OBDMonster BX100 OBD2 Breakout Box is built for technicians, ECU programmers, automotive electricians, diagnostic specialists, and serious DIY users who need more than a standard scan tool. It helps make the OBD2 diagnostic port visible, testable, and easier to understand during real repair work.

Modern vehicles rely heavily on electronic control modules, CAN-BUS communication, stable power supply, and accurate sensor data. When a scan tool fails to communicate, the issue may not be the scanner itself. It could be caused by low voltage, poor ground, damaged OBD2 pins, abnormal CAN signal, K-Line failure, or wiring problems. The BX100 helps technicians quickly inspect these basic conditions before moving into deeper troubleshooting.

Professional OBD2 Breakout Box for Real Diagnostic Work

The BX100 is not just an OBD2 adapter. It is a professional diagnostic interface that allows users to inspect the electrical and communication status of the vehicle’s OBD2 port. By connecting between the vehicle and diagnostic equipment, it gives technicians a clearer view of what is happening at the 16-pin diagnostic connector.

This makes the BX100 especially useful when diagnosing no-communication problems, checking OBD2 power and ground, verifying CAN-BUS or K-Line activity, preparing for ECU programming, or confirming that the vehicle’s diagnostic connector is safe and ready for advanced service.

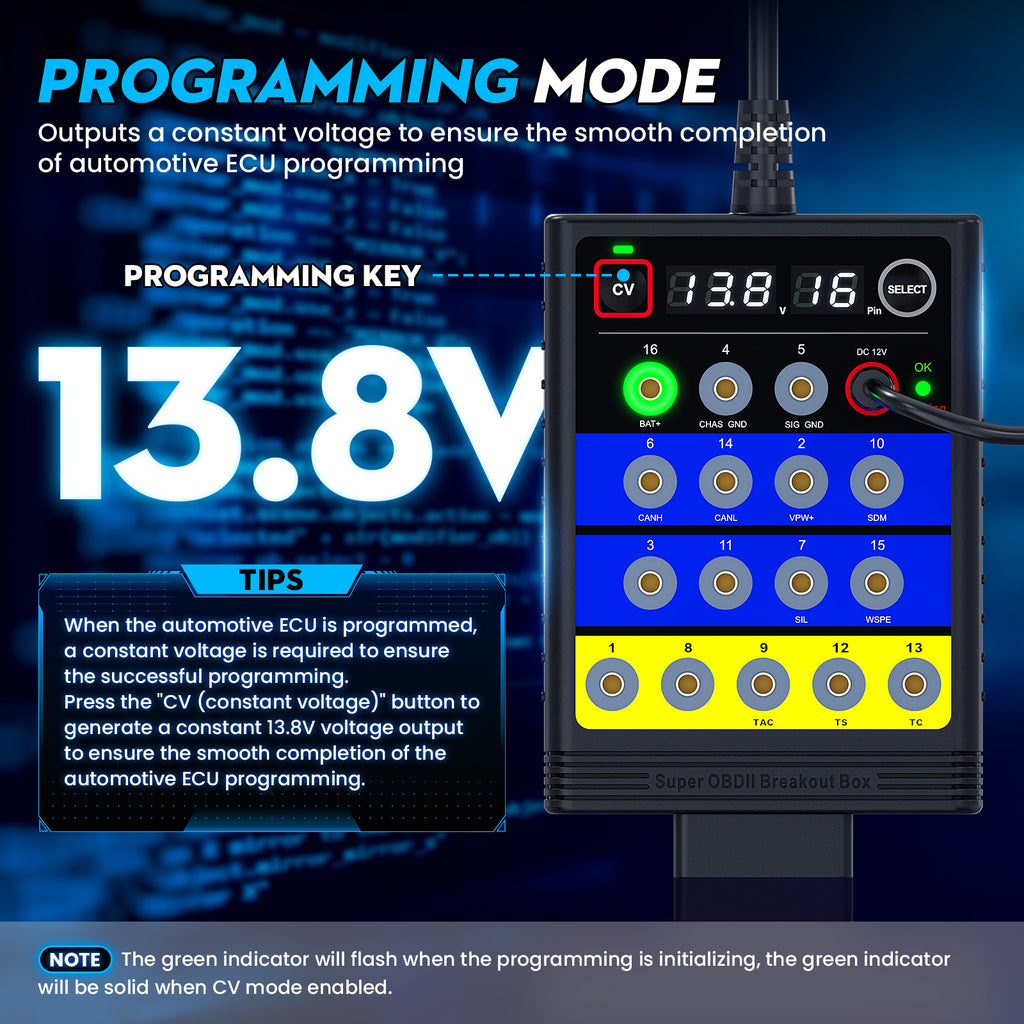

Stable 13.8V Support for ECU Programming

Voltage stability is critical during ECU programming, online coding, module flashing, and software-related operations. A sudden voltage drop may interrupt the process, cause communication failure, or increase the risk of module corruption.

The OBDMonster BX100 is designed with constant voltage support around 13.8V, helping technicians create a more stable electrical condition when performing programming-related work. This is especially valuable when the vehicle battery is weak, the ignition must remain on for a long time, or the diagnostic process requires continuous module communication.

Real-Time Voltage Display

The built-in voltage display allows technicians to monitor the OBD2 port voltage directly. Before scanning, coding, programming, or performing special functions, users can quickly confirm whether the vehicle has enough voltage for reliable communication.

This is useful for identifying weak battery conditions, unstable power supply, poor OBD2 power feed, or unexpected voltage drops during diagnostic work. Instead of connecting a separate meter every time, the BX100 gives technicians a faster visual reference.

CAN-BUS and K-Line Signal Detection

Many diagnostic connection problems are caused by communication line faults. The BX100 helps users check CAN-BUS and K-Line signal activity at the OBD2 interface, making it easier to determine whether the vehicle network is active and whether the diagnostic port is communicating normally.

For technicians dealing with no-communication issues, intermittent module access, CAN-related faults, or older K-Line systems, this feature provides a practical first-step inspection method before more advanced testing with a multimeter or oscilloscope.

16-Pin OBD2 Interface Inspection

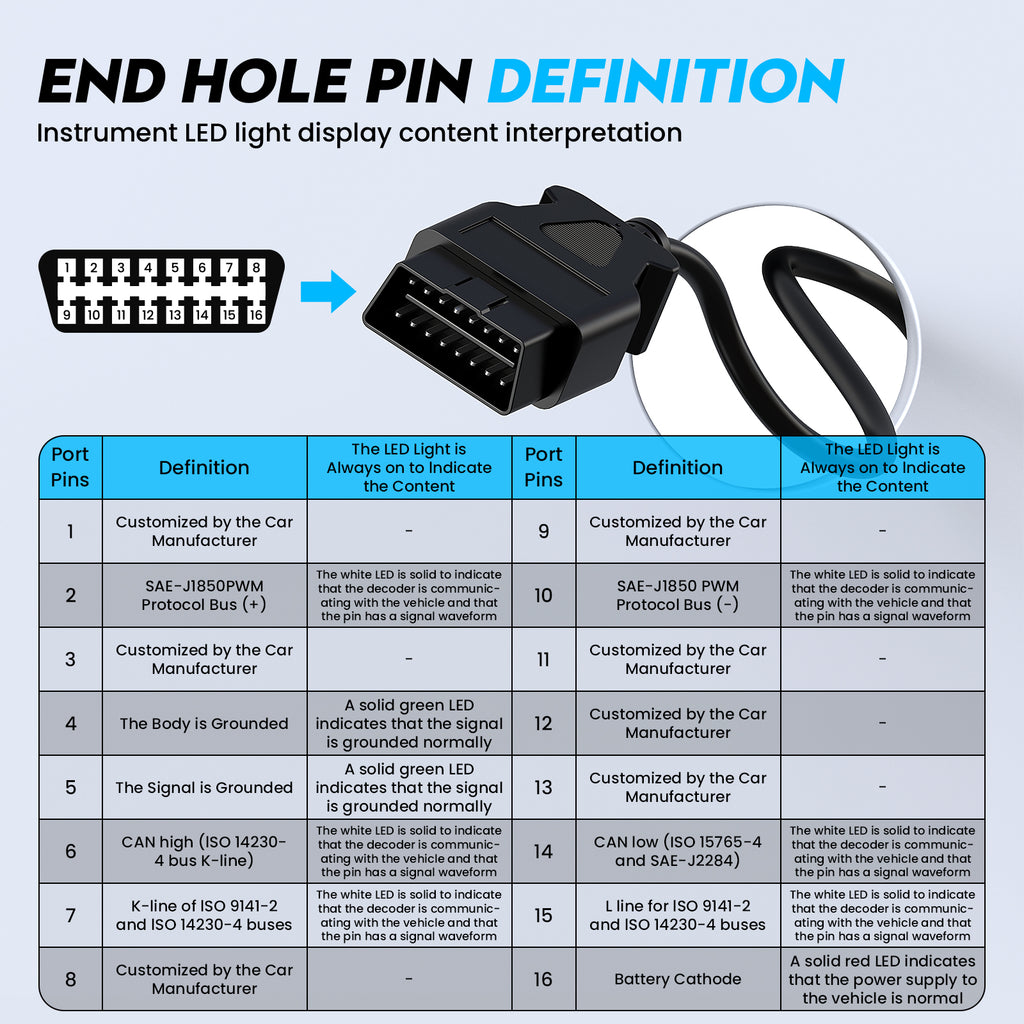

The OBD2 connector contains multiple pins for battery power, chassis ground, signal ground, CAN-H, CAN-L, K-Line, and other manufacturer-specific communication circuits. The BX100 helps technicians inspect the status of these pins more clearly and efficiently.

• Check OBD2 power supply condition
• Verify chassis ground and signal ground
• Inspect CAN-H and CAN-L communication lines
• Check K-Line signal activity on compatible vehicles
• Identify abnormal pin voltage or signal behavior
• Support faster troubleshooting of scan tool connection failure

Built-In Protection and Alarm Design

Professional diagnostic work often involves live circuits, modules, scan tools, programming devices, and external power sources. The BX100 is designed with practical protection and warning features to help users work more confidently.

Its short-circuit protection and sound/light alarm help alert technicians when abnormal conditions occur. This is especially important during electrical testing, programming preparation, and communication troubleshooting where incorrect connections or unstable circuits can create unnecessary risk.

New Industrial Design by OBDMonster

The BX100 follows OBDMonster’s bold black-and-red professional tool design language. The front panel is organized with clear functional zones, visible indicators, and a modern industrial appearance that fits a professional workshop.

A diagnostic tool should not only work well — it should also look professional, feel reliable, and help users operate with confidence. The BX100 is designed for technicians who want a tool that looks serious, performs practically, and belongs in a mid-to-high-end automotive diagnostic toolbox.

Key Features

Who Should Use the OBDMonster BX100?

The BX100 is designed for users who need more than basic fault-code reading. It is a professional diagnostic support tool for people who work with vehicle electronics, communication systems, and programming-related operations.

• Professional auto repair shops
• Automotive diagnostic technicians
• ECU programmers and module repair specialists
• Automotive electrical diagnostic specialists
• Fleet maintenance technicians
• Mobile mechanics
• Advanced DIY users and automotive enthusiasts
• Automotive training schools and technical education programs

Why Choose OBDMonster BX100?

A standard scan tool can read data, but it cannot always tell you whether the OBD2 port itself is electrically ready for communication. The OBDMonster BX100 helps fill that gap by giving technicians a clearer view of voltage, pin status, and communication-line activity at the diagnostic connector.

For professional repair work, this matters. Better visibility helps reduce guesswork, improve troubleshooting speed, and support safer programming preparation. Whether you are checking a vehicle before ECU programming, diagnosing a no-communication problem, or verifying OBD2 connector integrity, the BX100 is a practical tool to keep on the bench or in the service truck.
